CE-9120RJK - JK Johnny Joint Rear Trac Bar

CE-9120RJK - JK Johnny Joint Rear Trac Bar

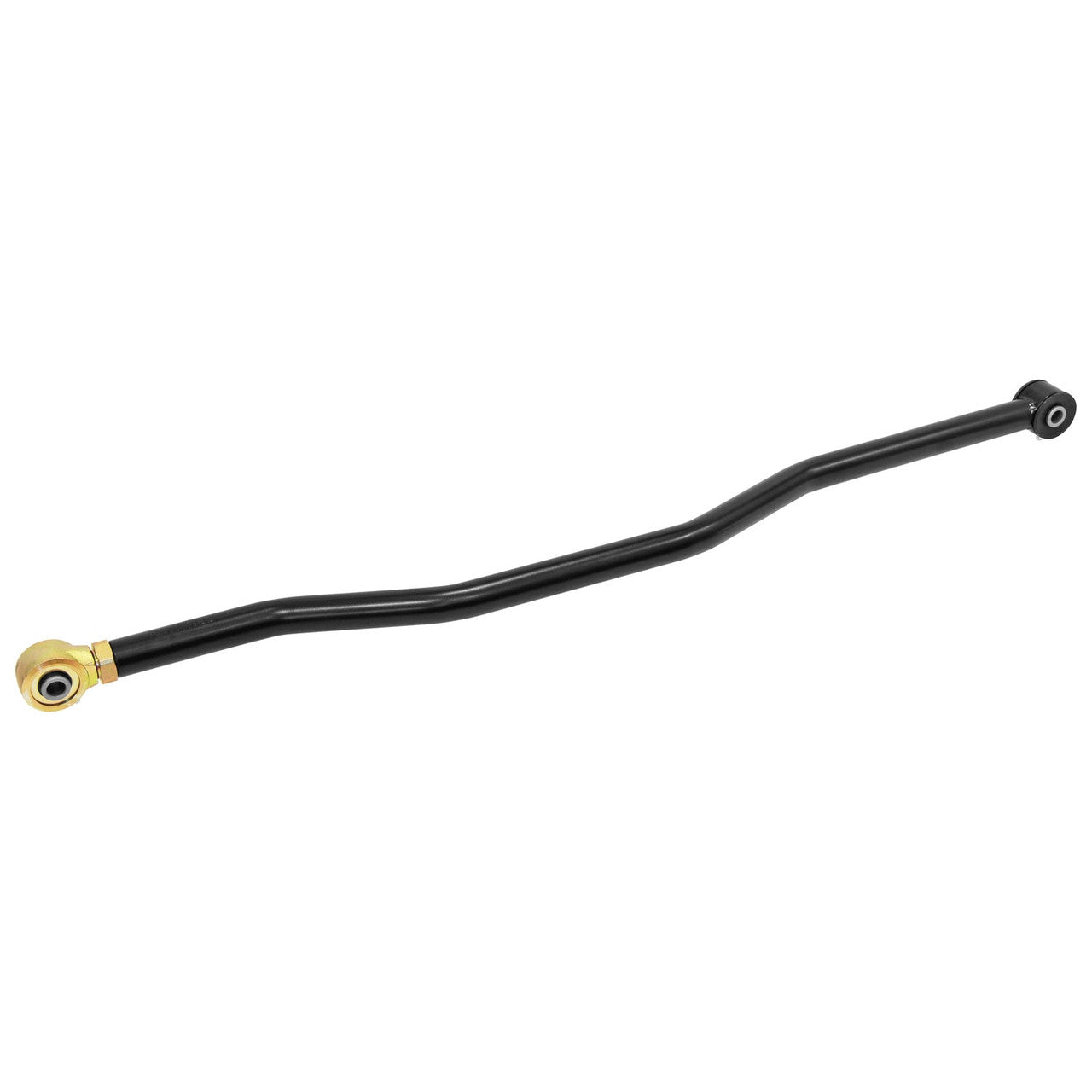

RockJock's Johnny Joint Adjustable Length Rear Trac Bar features precise bends for a perfect fit into the JK Wrangler or Unlimited vehicles. This bar can be used on a stock JK, on a JK with our Suspension System, or anything in between!

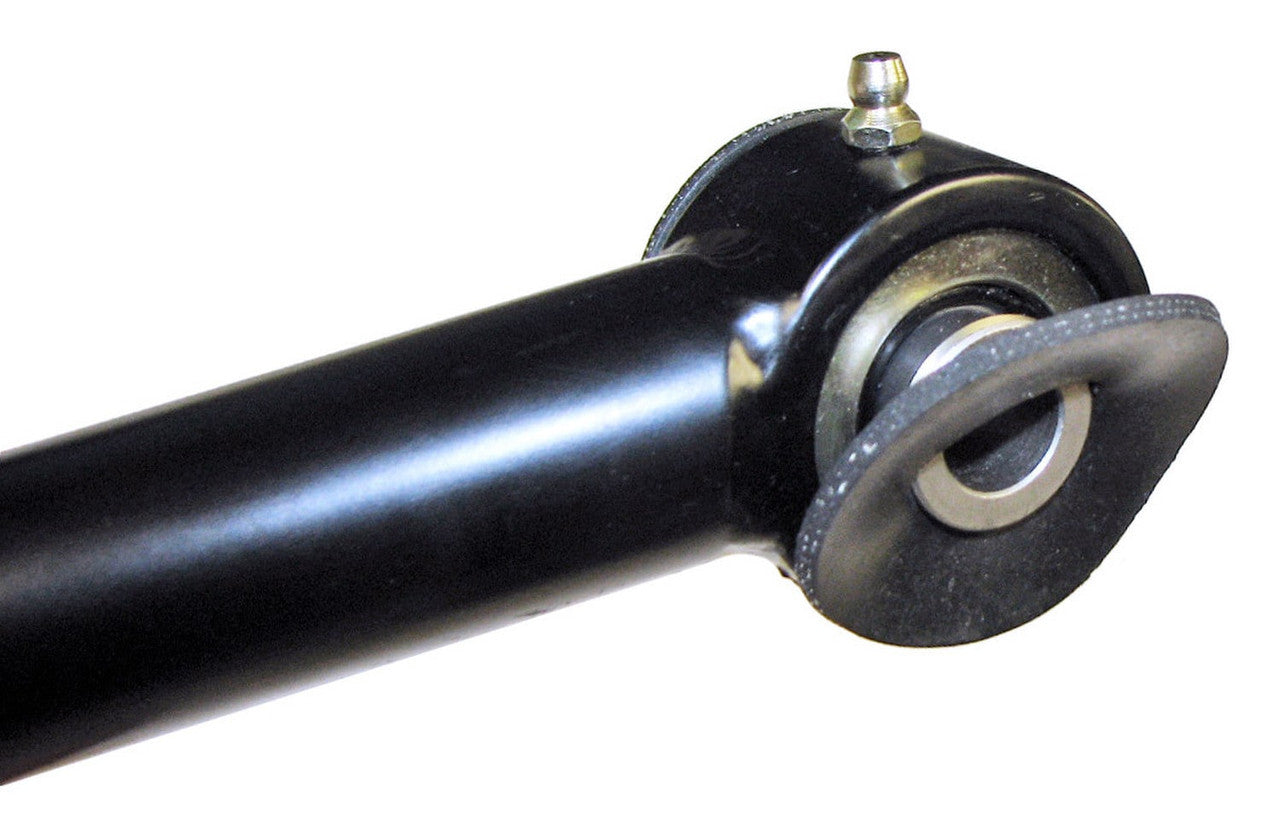

Trac Bar features our greasable narrow Johnny Joint rod ends on both ends for maximum articulation!
Finish is semi-gloss black powder coat on the bar and gold zinc plating on the Johnny Joint adjuster end.

Kit Fits:

• JK Wrangler Unlimited (4-door) – All Models
• JK Wrangler (2-door) – All Models

Kit Includes:

• Johnny Joint Front Trac Bar Assembly
• Rubber Washers (outboard of the Johnny Joint at the frame end to encourage the bar to re-center itself after articulating)

Adjustment Range:

• Closed – 39.685 in.
• Extended – 40.125 in.

Notes:

• Factory hardware is retained to attach the trac bar to the axle and the chassis.
• Bar is fabricated from 1.25 in. x .250 in. wall 4130 chromoly tubing.
• Adjuster features 1 in.-14 RH threads.
• Applicable Johnny Joint Tool for this Trac Bar: CE-9112T
• Johnny Joints require non-synthetic, hi-moly lube grease such as our CE-9013G

Parts List:

• Complete Johnny Joint Adjuster End: CE-9112N-13
• Johnny Joint Rebuild Kit (either end): CE-9112NRK
• Johnny Joint Pivot Ball (either end): CE-91122-2
• Jam Nut (small hex): CE-9120JK-JN
• Rubber Washer: CE-9120RW
• Zerk Fitting (on bar or Johnny Joint): CE-1103K21
